Packages type KA
These cases are hermetic sealing full-metal cases for assembled filtres.
In this category we offer following standard cases:
- KA 1
- KA 2
- KA 21
- KA 3
- KA 4
- KA 41
- KA 5
- KA 7
- KA 72

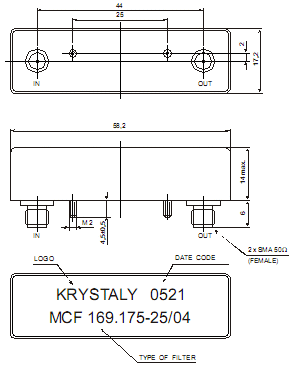

| KA 1 |
|---|

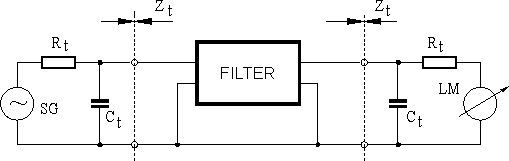

Outline dimensions [mm] Wiring diagram |

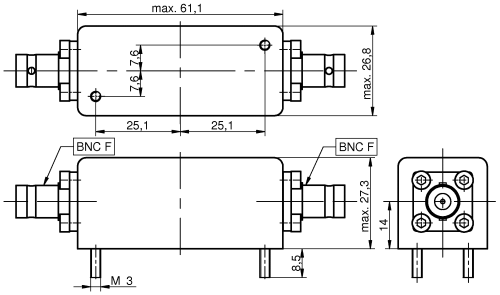

| KA 2 |
|---|
Outline dimensions [mm] Wiring diagram
|

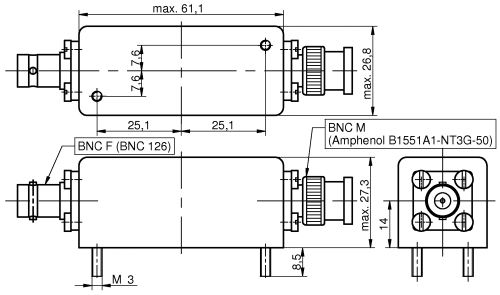

| KA 21 |
|---|
Outline dimensions [mm] Wiring diagram |

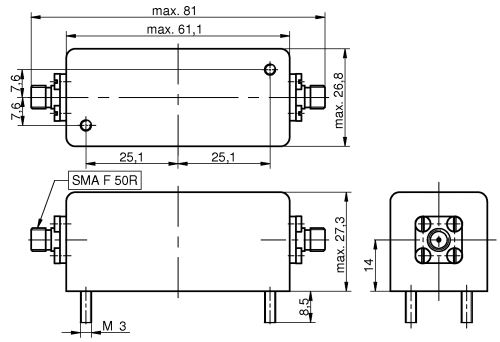

| KA 3 |
|---|
Outline dimensions [mm] Wiring diagram |

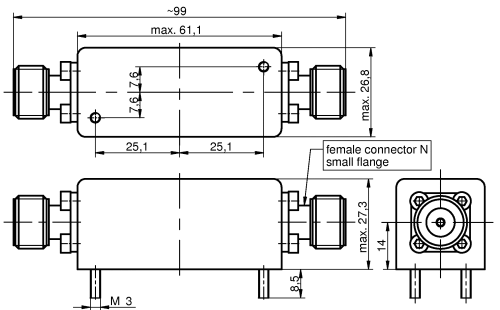

| KA 4 |
|---|
Outline dimensions [mm] Wiring diagram |

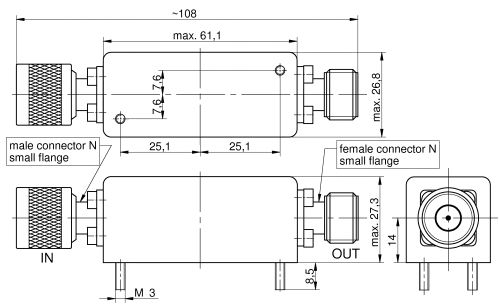

| KA 41 |
|---|
Outline dimensions [mm] Wiring diagram |

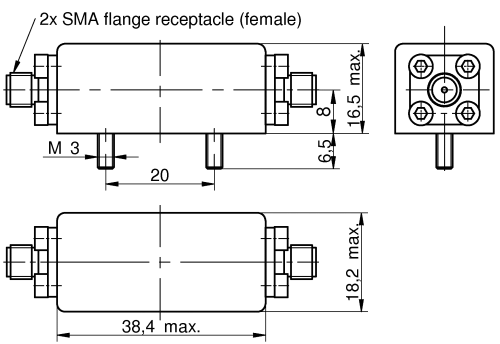

| KA 5 |
|---|
Outline dimensions [mm] Wiring diagram |

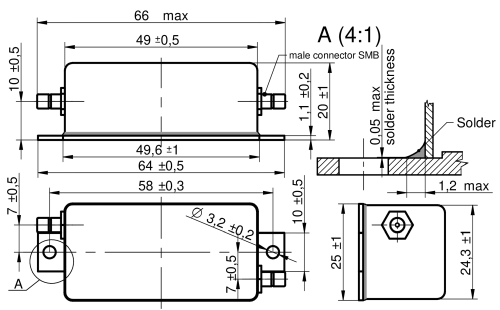

| KA 7 |
|---|
Outline dimensions [mm] Wiring diagram |

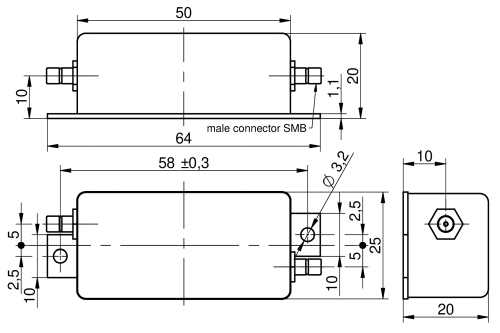

| KA 72 |
|---|
Outline dimensions [mm] Wiring diagram |
