Filters in packages type KV
These cases are metal cases for assembled filtres cemented by silicone elastome.
In this category we offer following standard cases:
- KV 2.1
- KV 3
- KV 5

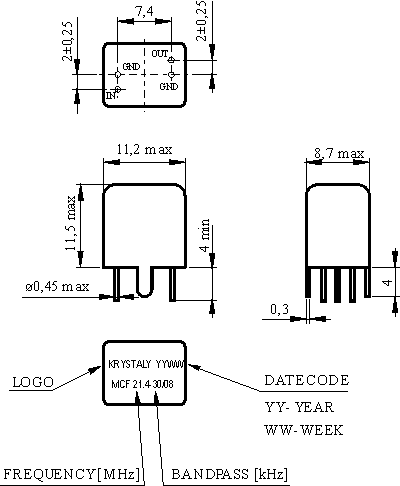

| KV 2.1 |
|---|
Outline dimensions [mm]

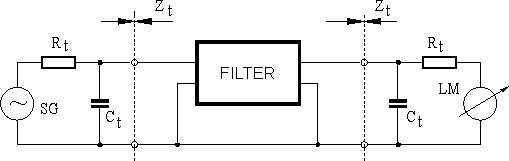

Wiring diagram
|

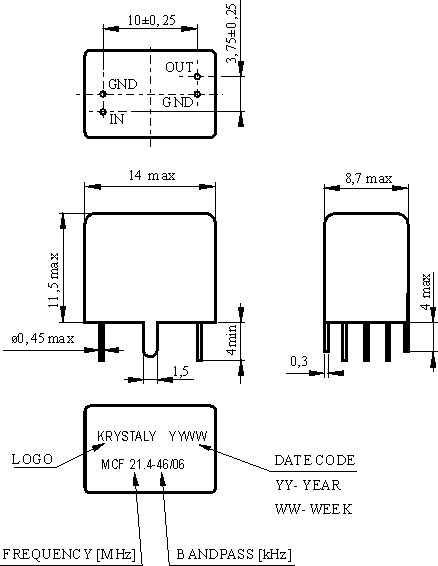

| KV 3 |
|---|
Outline dimensions [mm]
Wiring diagram
|

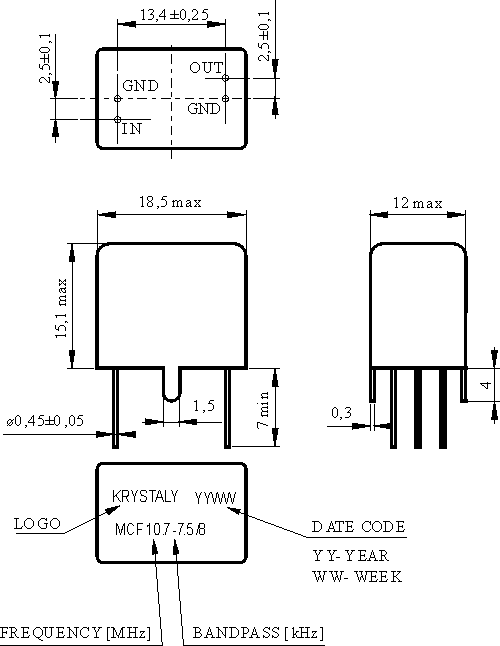

| KV 5 |
|---|
Outline dimensions [mm]
Wiring diagram
|
