Ceramic SMD packages

Small size ceramic package designed for SMD only

In this category we offer following standard cases:

  • SMD 7×5
  • 2x SMD 7×5
  • SMD 7×5, diagram for 4-pole filters



SMD 7×5

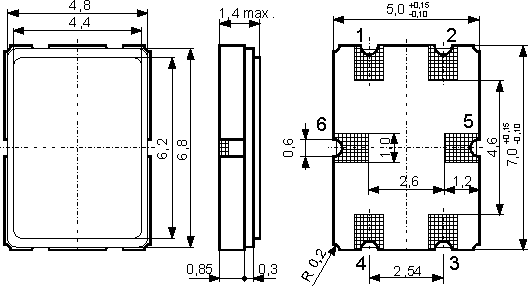

Outline dimensions [mm]

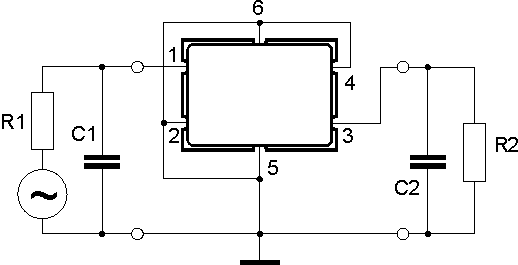

Wiring diagram



2x SMD 7×5

Outline dimensions [mm]

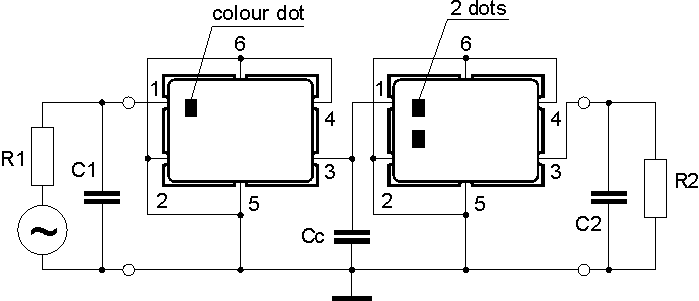

Wiring diagram



SMD 7×5, diagram for 4-pole filters

Outline dimensions [mm]

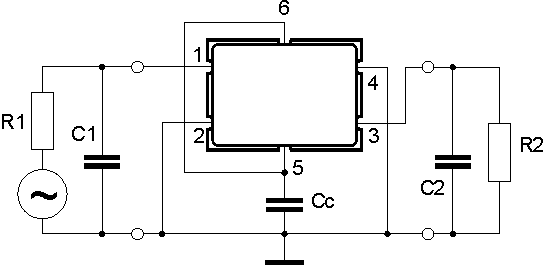

Wiring diagram
